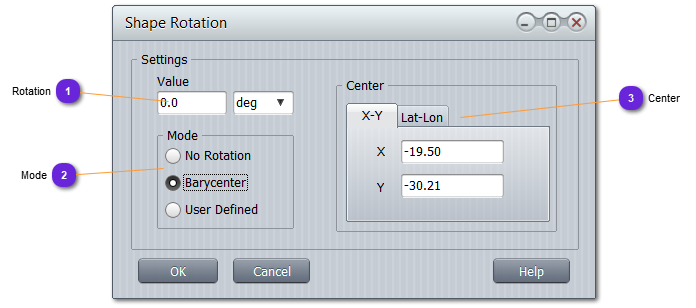

Rotation


Specify how a shape must be rotated.

Rotation
1

Rotation

1. Rotation
Set here the rotation value you want to apply on the shape.

2

Mode

2. Mode
Select which rotation mode to apply:
  • No Rotation: nothing will be done (rotation value will be kept unchanged but ignored)
  • Barycenter: the barycenter of the area will be used as the rotation point.
  • User Defined: use the Center block to define it.

3

Center

3. Center
Rotation center coordinates.
Editable only when User Defined mode is selected.
