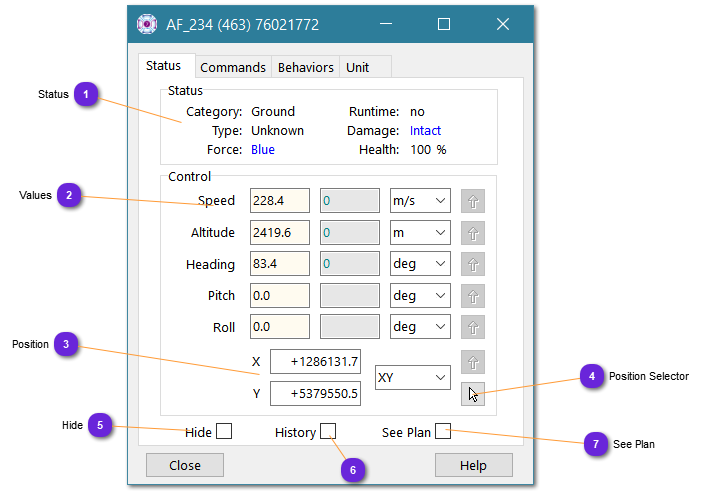

Status Real time status of the hooked entity. Read only
Values Fields (Speed, Altitude, Heading, Pitch, Roll) display current and target values of the hooked entity, in the unit chosen in the selector.
To
change the value, just click on the grayed target field, enter the new target value, then press
.
Position These two fields display the ground position of the hooked entity (in X-Y or Lat-Lon or decimal Lat-Lon).
To
relocate the entity, just click on one text field (both update will stop) and enter the new target value, then press
.
Position Selector For immediate relocation of the entity, use this button, then click on the map to grab the position (fields are updated) then use
to validate the change.
Hide Check/uncheck this option to hide /show the entity on the map.
History When checked, the history track will start (or restart) and will be displayed on the map (if entity moves).
When unchecked, history track is removed (and cleaned).
See Plan Check/uncheck this option to hide /show the entity plan (if any) on the map.
.
