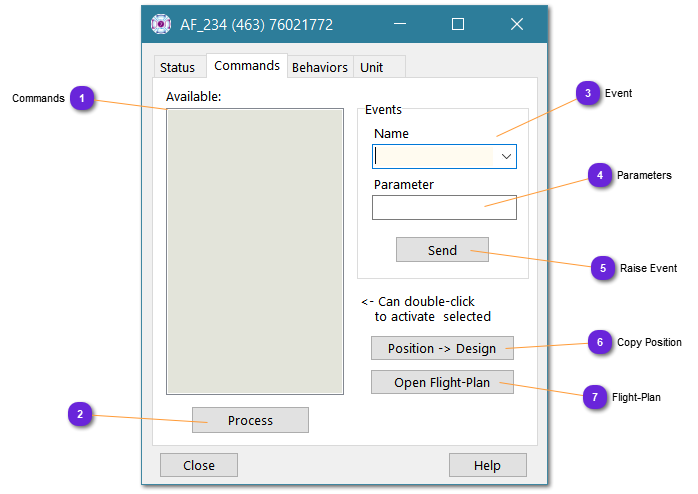

Commands

List of all available commands for the hooked entity.



Select a command in the list then press Process to activate it (if actions are requested by the command, like selecting on the map, the cursor will change to a +. If values must be entered, a text field window will appear, otherwise, command will immediately by processed).



Name of the event to raise at the entity scope.



Optional parameters to attach to the event.



Click this button to raise the above event.



Press this button to copy the current runtime position of the entity to the design counterpart.

This functionality is also available from the runtime entity popup menu.

Very useful to accurately position an entity using a 3D viewer only available during runtime.



If the entity is flying a flight plan, use this button to display the Flight Plan property window for runtime.
