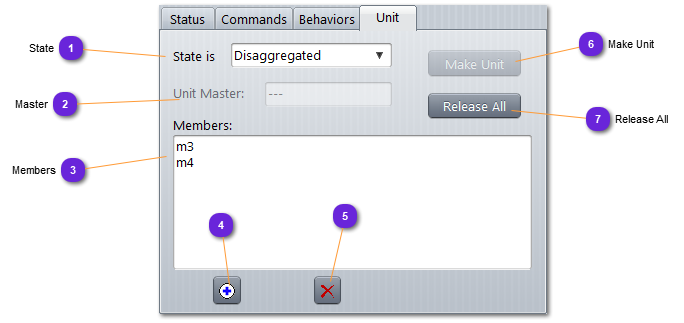

State Shows the status of the master (unit).
Aggregated : all members are hidden on the map
Disaggregated : all members are visible on the map (and simulated).
Master Read only field that gives the name of the master (unit) if hooked entity is a member. Empty (---) otherwise.
Members List of all entity members of the Unit (blow the actual master ).

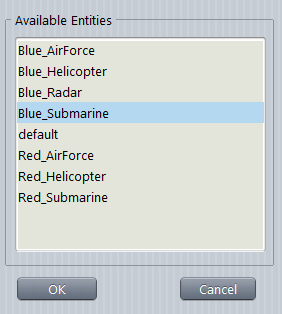

Add Member Use this button to select from a list of available entities (see image below) which one to add as a member of this unit.
The list of proposed entities does not belong to any unit (but can be unit master).
Remove Select one member in the above list and use this button to exclude it from the unit (will not delete the entity).
Make Unit If the hooked entity is not a Unit , depress this button to make it unit Master (then start adding members ).
Release All Use this button to free all members from the current Unit . The hooked entity will no more be a unit master (but can still remain member of another unit).
