Popup Menus

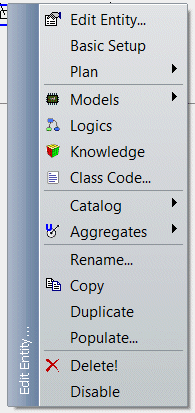

You get these popup menus by selecting the Entity on the map and mouse right click:


Edit Entity: display the property window.

Basic Setup: same as using tool . See here (end of page).

Plan: create or edit the entity plan.

Models: display the interface setting of all attached components or data-models.

Logics: display the interface setting of all attached logics.

Knowledge: display the interface setting of all attached knowledge.

Class Code: display the entity class code.

Catalog: copy or move the selected entity to the catalog list.

Aggregates: see here.

Rename: change the name of the entity.

Copy: copy the entity into the clipboard.

Duplicate: copy the current entity and paste it aside.

Populate: see here.

Delete: suppress the entity from the scenario.

Disable: make the entity inactive (disabled entities no more exist for the simulation even if they have a memory footprint and a data persistency in the runtime engine).


Name: of the entity, not selectable

Commands: list all user-defined commands

System: see below


Hook Window: display the hook window.

Properties: display the property window (read-only during runtime).

Plan: allow runtime creation and edition of a plan during runtime.

Freeze: stop all running behaviors of the entity (logics, knowledge and models)

Disable: stop and virtually removes the entity from the scenario (disabled entities no more exist for the simulation even if they have a memory footprint and a
data persistency in the runtime engine).

Aggregates: see here.

Rename: change the name of the entity.

Duplicate: will copy and paste the selected entity.

CopyPosition: copy the actual position of the entity to the design entity counterpart.

Delete: remove the entity from the scenario (and from the runtime engine).

All modifications in the scenario at runtime will have no effect on the design counterpart (except for CopyPosition). At simulation stop, the scenario is reverted with design values.
