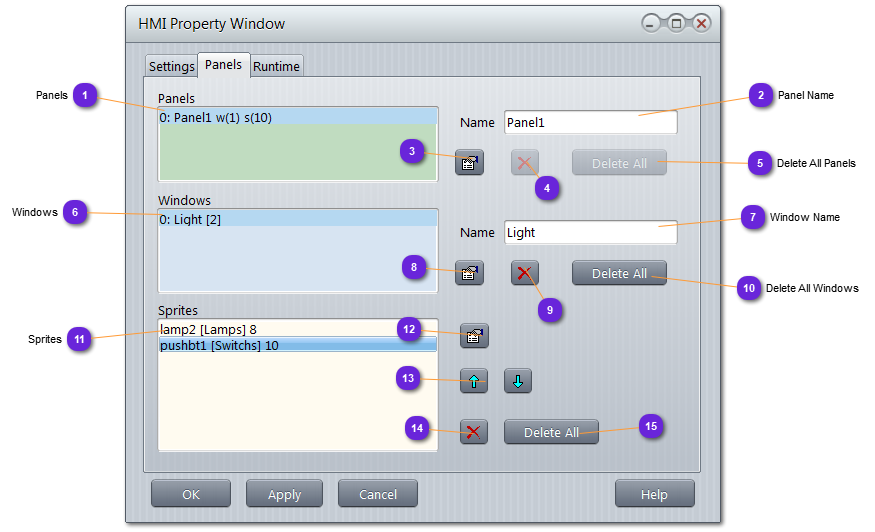

Panels List all defined Panels for the HMI.
Each line shows the Panel id , its Name , the number of Windows and the total number of Sprites .
Only one allowed on the current version.
Panel Name Name of the selected Panel.
Panel Properties Displays the property window of the selected Panel.
Not available yet.
Panel Delete Remove the selected Panel from the HMI.
Not available yet.
Delete All Panels Remove all Panels from the HMI.
Not available yet.
Windows List all defined Windows for the selected Panel.
Each line shows the window Name and the number of Sprites it contains.
To create a new Window, use the + tab on the bottom tab list:
To edit a defined window, select the corresponding tab.
Select Base Window tab to go back to the main Panel.
Window Name Name of the selected Panel Window.
Window Properties
Window Delete Removes the selected Panel Window and all its embedded Sprites.
Delete All Windows Removes all Panel Windows and their embedded Sprites.
Sprites List all defined Sprites for the selected Window or Panel .
To list only the Base Panel Sprite, select the Panel in the top list. This will unselect the Window list. If a Window is selected in the above list, only its Sprite list is displayed.
Each line shows the Sprite Name , the Type and its id .
Sprite Properties Call the selected Sprite property window.
Rearrange Move up or down the list the selected Sprite.
This can be useful for overlapping Sprites as they are processed and displayed from top to bottom .
Sprite Delete Remove the selected Sprites of the list.
Delete All Sprites Remove all Sprites of the list.
