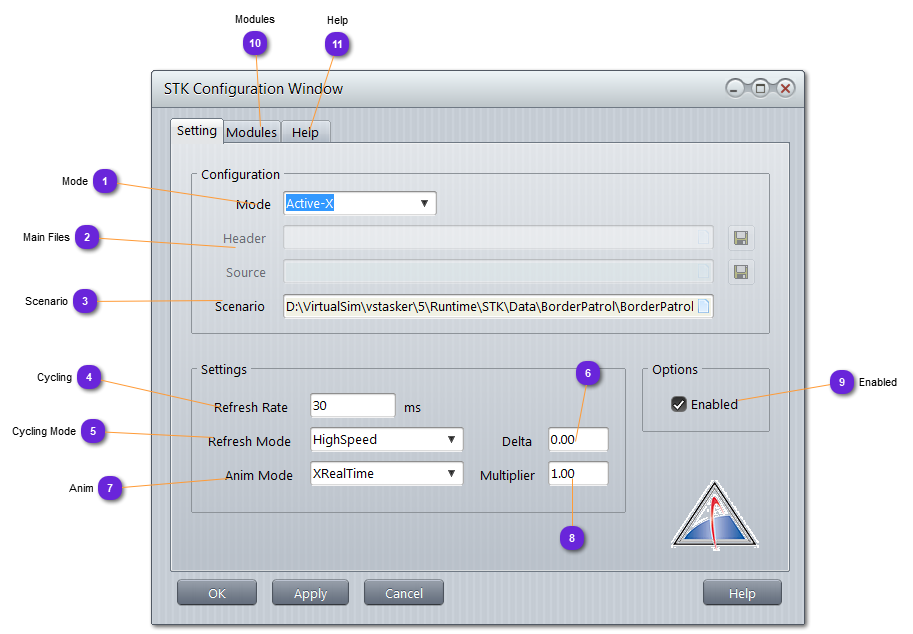

Mode Select the kind of integration requested with STK API:
: use the published COM interface of STK
: use STK viewer using the Active-X component
: communicate with STK using the LAN/Socket method.
For COM and Active-X, vsTASKER supports only STK up to version 9.
Main Files In Connect mode, use runtime/stk/vt_connect.h|cpp
In COM mode, use only runtime/stk/vt_com.cpp
In Active-X , vsTASKER will automatically generate the code call to the STK viewer.
Scenario Specify here which scenario STK must load at startup (only for Active-X and Connect mode).
Cycling Synchronization frequency for runtime clock (only for Active-X mode).
Cycling Mode Select between:
: update data as fast as possible
: update data when
Delta milliseconds (below) are elapsed since the last update.
Delta When Delta mode is selected for the refresh, specify the time to wait in milliseconds, between two updates.
Anim STK internal runtime mode setup. See STK documentation.
Multiplier In case XRealTime is selected for Anim Mode , specify the multiplier time factor to use.
Enabled One viewer must be at least enabled for the simulation to compile. Enabling one viewer disable all the other one.
When unchecked, all specific viewer code (and third party software API) are not generated and do not impact the makefile.
Modules List all modules that will be included into the makefile for compilation and link. The list content depends on the selected Mode (COM, ActiveX or Connect).
Use to add more files and to remove selected ones.
Help Put here all text explanations or documentation content needed to maintain this Viewer.
The Help content is saved but is not inserted into the generated code.
It will be used for the automatic document generation (see
Make Documents )
reverts to what the list should be, discarding all user entries (or removal).
