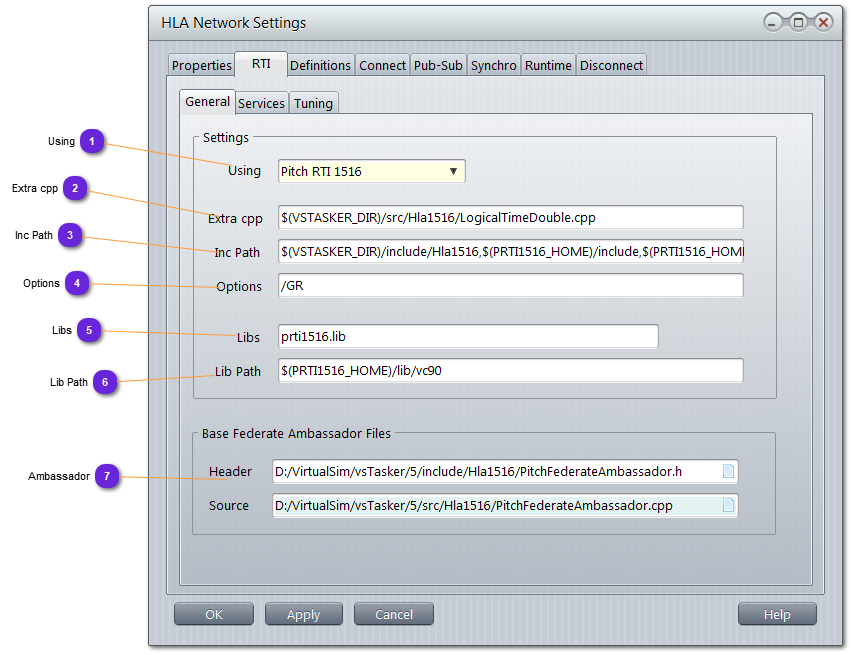

Using vsTASKER can generate code for various RTI.
Depending on the RTI you have licensed and intend to use, select it into the list.
Supported RTI are the following:
Extra cpp If you need to add some extra modules that must be compiled with the generated files, it is a good place to specified them here and each module separated with a comma.
When the complete path is not used, it must be specified in the next field (Inc Path).
Inc Path By default and according to the RTI chosen, vsTASKER will fill set the field with predefined values.
Check that you have the environment variables defined.
All paths must be separated with commas.
Options Here stand the compilation options (and mostly defines) requested by the RTI modules mainly.
Libs List here all necessary libraries requested to link the application.
Lib Path This field specifies the library path for the libraries listed above.
Ambassador vsTASKER will generate a vsTaskerAmbassador class that will inherit from BaseFederateAmbassador defined in these files.
They are normally belonging to each RTI manufacturer and are compliant with the standard.
However, vsTASKER is using locally copied files that the user can replace with the latest ones from the manufacturer of their API.
