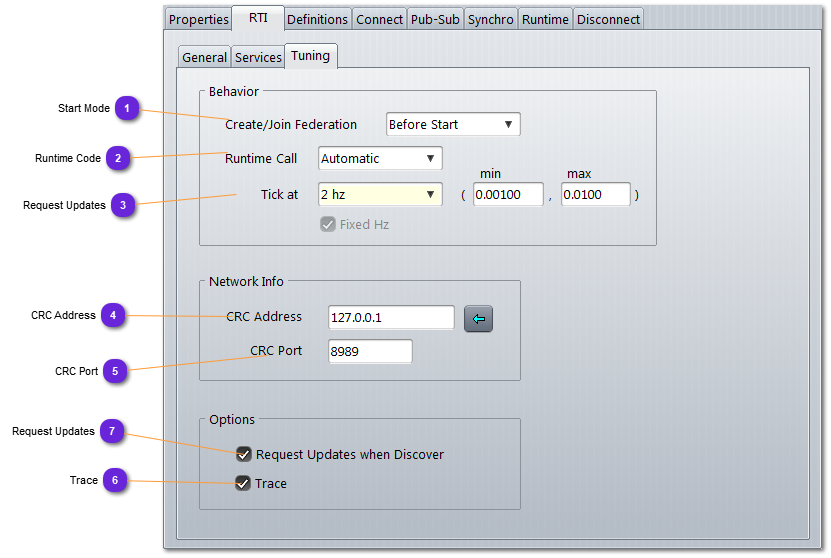

Tuning


Tuning
1

Start Mode

1. Start Mode
Used to specify when the Federation shall be joined or created.

Before Start: Federation will be created or joined then, simulation engine will wait for the button to be pressed.
After Start: As soon as the button is pressed, Federation will be created or joined.
Manual: Federation as to be created or join from the user code, typically inside the Connect panel of the User Code.

2

Runtime Code

2. Runtime Code
When Automatic, time synchronization (including also Point) is handled by vsTASKER.
When Manual, user code will be processed, typically into the Synchro panel of the User Code.

3

Request Updates

3. Request Updates
When this option is selected, vsTASKER will generate the code to force Object publishers to resend all Attribute data to the current Federate, for any discovered Object.
This is very useful when a Federate joins a Federation during runtime and must get the latest data from published Objects.

If Fixed Hz is checked, the frequency selected is the wall clock frequency and not the simulation frequency. It remains steady even if the simulation is accelerated or deccelerated.

4

CRC Address

4. CRC Address
IP address of the RTI server (or client/proxy).

5

CRC Port

5. CRC Port
TCP/UDP port used by the RTI server (or client/proxy).
8989 is the default port used by default by RTI providers.

6

Trace

6. Trace
Select this option for verbose mode during runtime.
More trace will be visible on the console window and on the output file (sim_out.txt)

7

Request Updates

7. Request Updates
Force all FedItems to request update for all discovered objects.
