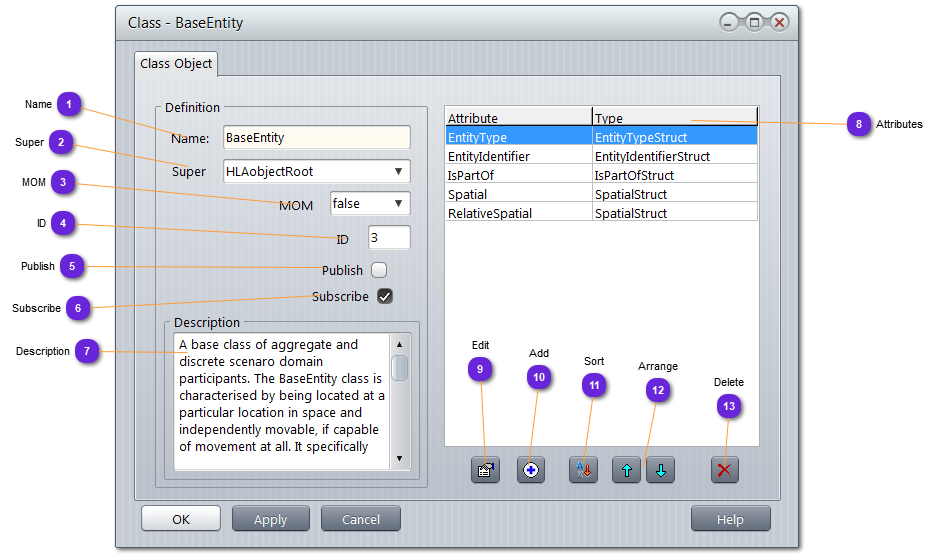

Object Class


Object Class
1

Name

1. Name
Object/Interaction (class) name in the Federation

2

Super

2. Super
Select the inherited Object/Interaction (parent).

3

MOM

3. MOM
Set it to true for Management (system) object or false for user-defined one.

4

ID

4. ID
Local id of the Object/Interaction. Read-only.

5

Publish

5. Publish
Check it if you want this Object/Interaction to be used as a publisher FedItem by the Converter.

6

Subscribe

6. Subscribe
Check it if you want this Object/Interaction to be used as a subscriber FedItem by the Converter.

7

Description

7. Description
Set the help/description of this Object/Interaction.

8

Attributes

8. Attributes
List of all the attributes of the Class and the associated type.
You can double click the entry for edition.

9

Edit

9. Edit
Double click the Attribute/Parameter in the list or use this button to Edit it.

10

Add

10. Add
Use to add a new Attribute/Parameter in the List.

11

Sort

11. Sort
Sort all Attributes/Parameters in alphabetic way.

12

Arrange

12. Arrange
Move up or down the list the selected Attribute/Parameter.

13

Delete

13. Delete
Suppress the selected Attribute/Parameter from the Object/Interaction (class).
