Object Fields

Uses to setup all requested parameters of an OMT Object Field.

Under 1516, all fields can be parameterized.

Use default values if you do not know the proper setting.

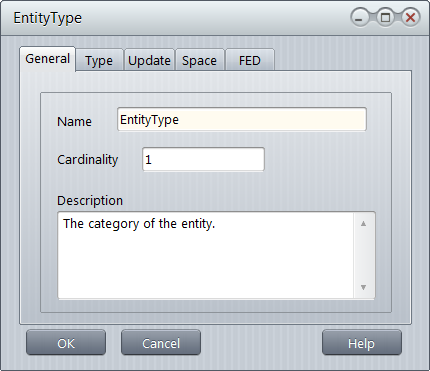

Name	Mandatory field
Cardinality	This is used to record the size of an array or sequence. A designation of 1+ in this column shall allow for unbounded sequences. Cardinalities of multidimensional arrays shall include the sizes of every dimension listed in their normal order of precedence. A one (1) shall be entered in this column for any attribute that is composed of a single instance
Description	whatever text to describe the Attribute/Parameter

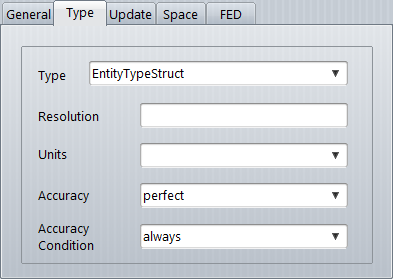

Type	Mandatory field. Select the type from the list built based on the Enum, Complex, Variant, Array, Basic and Simple types.
Resolution	This entry may have different kinds of entries, depending upon the kind of parameter. For parameters of scalar numerical measures, the resolution column may contain a single dimensioned numeric entry for each row of the table. This value may specify the smallest resolvable value separating parameter values that can be discriminated. However, when such parameters are stored in floating point data types, their resolution so defined might vary with the magnitude of the parameter value. Hence, in these cases and others, a better sense of the resolution may be conveyed by the data type.
Units	if available in the FOM, select it from the drop down list, N/A otherwise (can be left blank)
Accuracy	This entry is intended to capture the maximum deviation of the parameter value from its intended value in the federate or federation. This is ordinary expressed as a dimensioned value, but it may also be perfect for many discrete or enumerated parameters
Accuracy Condition	This shall contain any conditions required for the given accuracy to hold in a given simulation or federation execution. It may consist of reference to a particular type of update algorithm that determines the accuracy, or it may be an unconditional always.

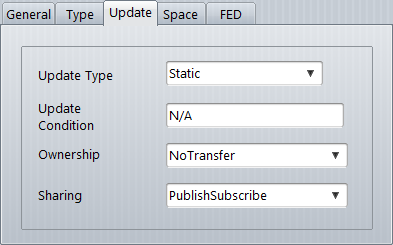

Defines the way the value must be updated by the RTI, in a Publish, Subscribe or both modes.

Update Type	N/A, Static, Periodic, Conditional
Update Condition	Specify here condition if Type is set to Conditional. Mostly literal information
Ownership	Divest, Acquire, Divest-Acquire, No Transfer
Sharing	Publish, Subscribe, Publish-Subscribe, Neither

For Data Distribution Management only.

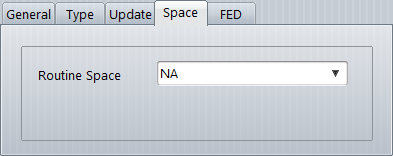

Routine Space

This column shall record the association of an interaction parameter with a routing space if a federation is using DDM services. It shall contain a routing space name from the routing space table. For SOMs, or for FOMs in which the federation is not using DDM services, N/A shall be entered into this column

Federate, Service Group, D1, D2, D3, D4, D5, D6

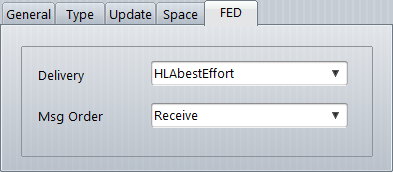

For 1.3, use FED panel only.

Delivery	Reliable, Best Effort
Msg Order	Time Stamp, Receive
