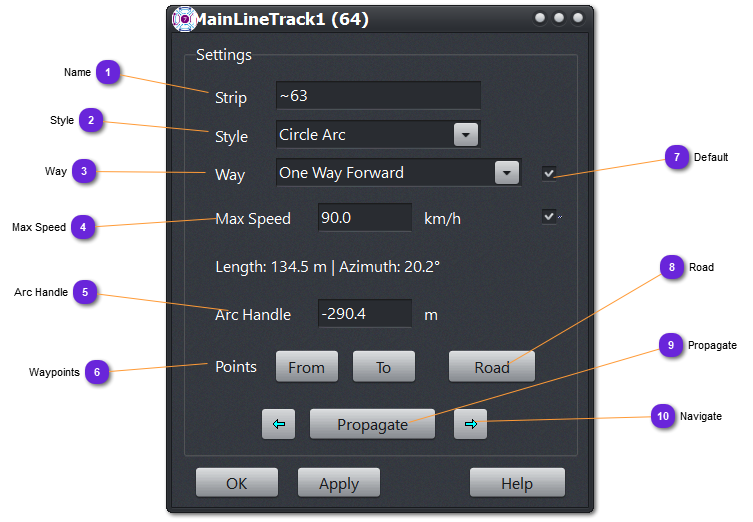

Name Optional name of the strip. Automatically drawn.
Style Specify the type of segment between the From and To points:
Way Specify the orientation of the traffic on the strip:
One way Forward : all lanes are used forward from first point to last.
One way Backward : all lanes are used backward from last to first.
Two ways : half of the lanes are used forward and the other half used backward.
No way : cannot pass whatever the direction.
Max Speed Set the maximum speed allowed on the strip.
Arc Handle When the style is set to Circle Arc , this value is used to move away the handle defining the curvature of the arc between the two points. The higher the value, the flatter the arc.
Use negative value to change the arc way.
Press button to see the result on the map.
Waypoints Display the
property window of each extremity point of the strip.
Default Check this value as Default for the Propagate button (9).
Road Open the Road property window the Strip belongs to.
Propagate Will propagate to all strips of the road the values checked as Default (7)
Navigate Use these buttons (right and left) to navigate the road from one strip to the next one successively, forward and backward .
