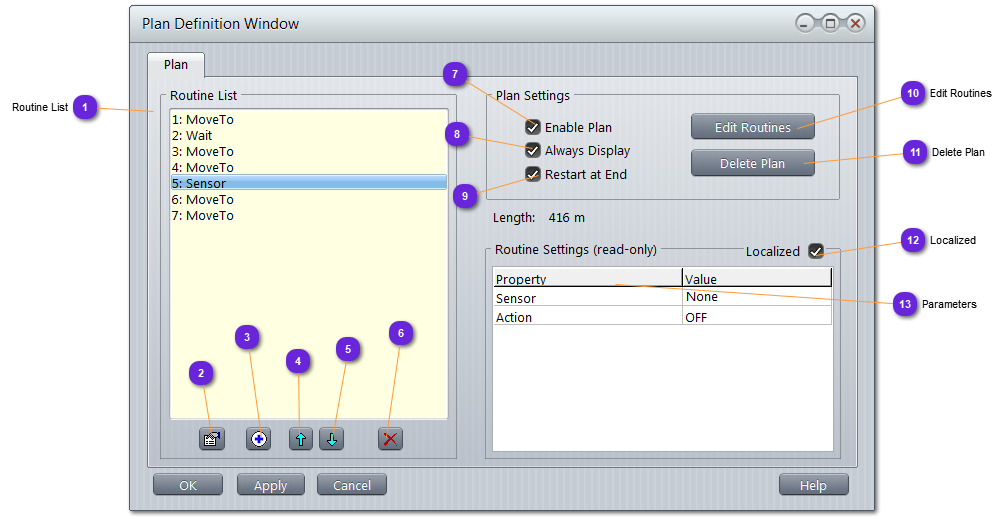

Plan Definition


Plan Definition
1

Routine List

1. Routine List
List all routines from first plan-point to last one, that are making the actual plan.

2

Properties

2.
Display the plan-prop editor window for the selected routine.

3

Add

3.
Add/Insert a plan-point after the select one in the list (or at the end if none selected).
The plan-point position will be the one of the selection (if inserted) or the last plan-point of the list (if added).

4

Move Up

4.
Move the selected plan-point one position up (towards the beginning of the plan).

5

Move Down

5.
Move the selected plan-point one position down (towards the end of the plan).

6

Delete

6.
Remove the selected plan-point.

7

Enable

7.
Activate the current plan when checked.
If unchecked, the plan will not be followed by the entity at start.

8

Display

8.
If checked, the plan will always visible on the map.
If unchecked, the plan will only be visible when the associated entity is selected.

9

Restart

9.
If checked, the plan will loop after the last routine leaves.
If unchecked, the plan will normally finish at the last routine.

10

Edit Routines

10. Edit Routines
Call the routine editor window.

11

Delete Plan

11. Delete Plan
Removes all plan-point and delete the whole plan.

12

Localized

12. Localized
Same as On Map in the plan-point editor.

13

Parameters

13. Parameters
Data interface of the selected routine. User can modify the values in this window.
