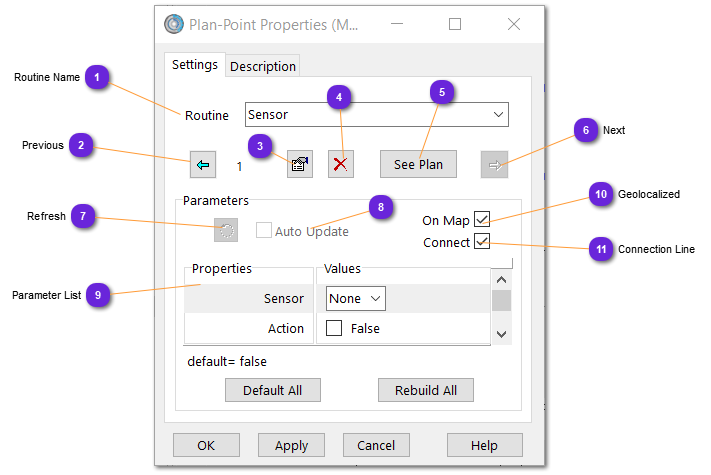

 Routine NameSelect the routine to attach to the actual plan-point.
The list is extracted from the actual routine list attached to the entity class.
|
|
 PreviousSwitch to the previous plan-point (if any)
|
|
 Properties
 Show the routine property window for editing
|
|
 DeleteRemove the actual plan-point from the plan.
If the plan-point was the last one, the plan is also deleted.
|
|
 Plan WindowDisplay the actual plan window for editing. See here.
|
|
 NextSwitch to the next plan-point (if any)
|
|
 RefreshAsk the simulation engine to refresh the routine values (9) with the runtime ones.
|
|
 Auto RefreshForce the refresh at 1hz for all time the window is kept opened.
|
|

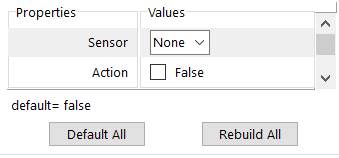

 Parameter ListList all the routine parameters defined as Dyn-UI. See here to know how to use.
|
|
 GeolocalizedWhen checked, the plan-point will be geolocalized (and selectable) on the map and the routine will have the capability to retrieve its position.
This is mandatory for some routines that needs to compare the actual entity position with the plan-point position to control the navigation.
Conversely, a routine that will only activate some components of the entity will not need to be geolocalized.
|
|
 Connection LineWhen checked, the plan-point will be visually connected to the previous plan-point (on the map).
|
|
