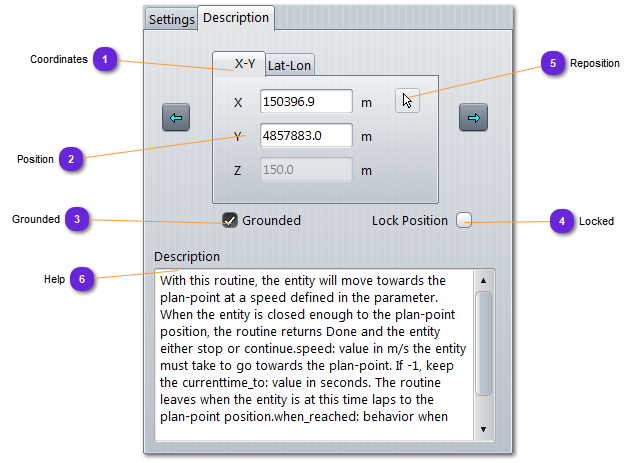

Description

Coordinates

Select here the tab preferred for the coordinates units.

XYZ or Latitude, Longitude, Altitude

When the routine is localized on the map, the position is displayed here.

This position is available on the routine code using the WCoord coords variable.

If checked, the routine is clamped on the ground below it.

Otherwise, the altitude can be set manually (for aircraft or helicopter).

If checked, the position cannot be modified using the mouse. This insure that the plan will not accidentally be modified.

Use this button than click on the map to update the routine position.

Display the help part of the routine, as defined in the routine definition.

Read-only text.
