User Settings

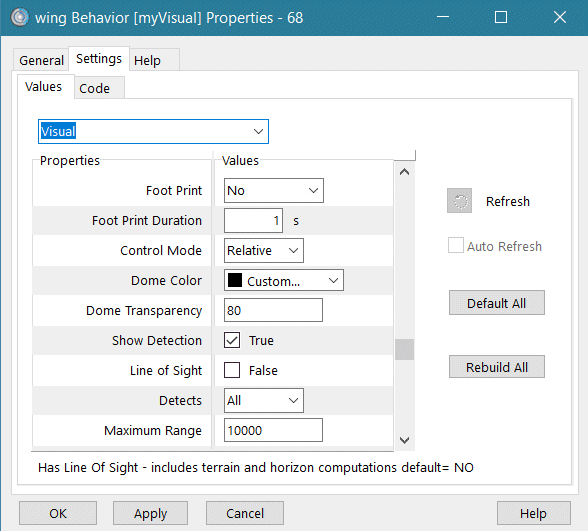

If the Logic, Knowledge or Model definition includes a Dyn-UI, the published entries appears the in Value List editor below.

If blank values are set, default one will be used instead.

If user enters its own, they will be used after default values.

All entries are string values. They are converted in their proper types at runtime.

Toggle Default: this button retrieve the Dyn-UI default values as defined from the static interface definition. Pressing this button again removes entries that are identical to the default values.

For model Component or Data Model, if inheritance is used, the Inherit pull down menu will display user interface for each parent.

See here to learn how to use the interface.

Runtime Setting

Changing values during runtime can update the simulation engine with updated values by pressing the Send button.

Runtime (modified) values will be lost and replaced by design ones as soon as simulation ends.
